AP二层注册+自动上线（基础 HCL模拟器）
实验须知：AP的出注册过以及capwap隧道建立过程
AP获取地址----AP发现AC-----AP请求加入----AP自动升级----AP配置下发----AP配置确认---CAPWAP完成

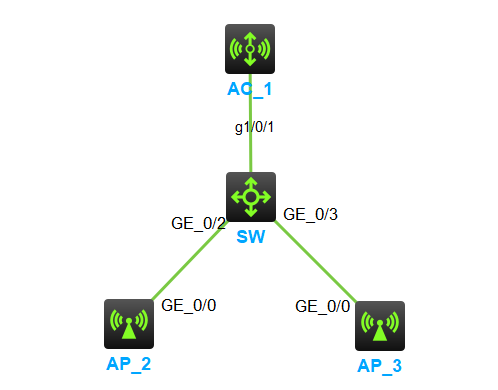

配置思路
1、二层交换机SW配置：创建vlan 添加接口
[H3C]vlan 10 [H3C-vlan10] [H3C]int range g1/0/1 to g1/0/3 //针对连续的端口做同样的操作，可以用rang命令 [H3C-if-range]port access vlan 10
2、无线控制器AC中创建vlan 配置IP地址，配置DHCP 给AP 分配地址；
[AC]vlan 10 [AC-vlan10]port g1/0/1 [AC-vlan10]int vlan 10 [AC-Vlan-interface10]ip address 10.1.1.1 24 [AC]dhcp enable [AC]dhcp server ip-pool ap //给AP分配地址 [AC-dhcp-pool-ap]network 10.1.1.1 24 [AC-dhcp-pool-ap]gateway-list 10.1.1.1 [AC]dis dhcp server ip-in-use //查看dhcp 分配ap的地址 IP address Client identifier/ Lease expiration Type Hardware address 10.1.1.2 0152-7113-2503-02 Dec 15 20:12:24 2023 Auto(C) 10.1.1.3 0152-70e9-d902-02 Dec 15 20:12:29 2023 Auto(C)
[AC]wlan auto-ap enable [AC]dis wlan ap all //查看AP上线情况 （state 状态R 代表run 上线状态） AP information State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad C = Config, DC = DataCheck, R = Run, M = Master, B = Backup AP name APID State Model Serial ID 5270-e9d9-0200 1 R/M WA6320-HCL H3C_52-70-E9-D9-02-00 5271-1325-0300 2 R/M WA6320-HCL H3C_52-71-13-25-03-00
4、固化自动上线AP ，修改AP名称
[AC]wlan auto-ap persistent all //固化自动上线的AP [AC]wlan rename-ap 5270-e9d9-0200 ap1 //修改AP的名字，便于后面操作 [AC]wlan rename-ap 5271-1325-0300 ap2 [AC]dis wlan ap all //查看所有AP上线情况 AP information State : I = Idle, J = Join, JA = JoinAck, IL = ImageLoad C = Config, DC = DataCheck, R = Run, M = Master, B = Backup AP name APID State Model Serial ID ap1 1 R/M WA6320-HCL H3C_52-70-E9-D9-02-00 ap2 2 R/M WA6320-HCL H3C_52-71-13-25-03-00
